Unit4: Computer Networks
The syllabus says that you should be able to:
- describe a router and its purpose;
- describe the use of WIFI and Bluetooth in networks;
- describe how to set up a small network involving access to the Internet, understanding the need to set up the use of a browser, email and an ISP;
- identify the advantages and disadvantages of using common network environments such as theInternet;
- describe what is meant by the terms user id andpassword, stating their purpose and use;
- identify a variety of methods of communicationsuch as:
- fax,
- e-mail,
- bulletin boards,
- tele/video conferencing;
- define the terms:
- Local Area Network (LAN)
- Wireless Local Area Network (WLAN)
- Wide Area Network (WAN)
- describe the difference between LANs and WANs, identifying their main characteristics;
- describe the characteristics and purpose of common network environments, such as intranets and theInternet;
- describe other common network devices (including hubs, bridges, switches and proxy servers);
- discuss the problems of confidentiality andsecurity of data, including problems surrounding common network environments;
- identify the need for encryption, authenticationtechniques, including the use of user identification and passwords, when using common network environments such as the Internet.
What is a Network?
A network consists of two or more computers that are linked in order to share resources (such as printers and CDs), exchange files, or allow electronic communications. The computers on a network may be linked through cables, telephone lines, radio waves, satellites, or infrared light beams.
Two very common types of networks include:
- Local Area Network (LAN)
- Wide Area Network (WAN)
What is a Server?
A server is one of the main part of the computer network because the server is a powerful computer with lots of hard drive space (or a storage space) and a fast processor. This type of computer is the main computer that store most of the data from the computers that are connected to the computer network and the data that are store inside the server can also be share among the computers that are connected to the computer network.
Advantages of Computer Network
- Share hardware peripherals like expensive printers.
- Share files between users
- Share software through an application. e.g If i have a lot of computers , i bought photoshop, I want to put the software in every computer. I can installed it in each of the computer one by one. Or I can installed the software in the server called “Application server”, which when we are using we are using it from the server.
- Allows user to communicate better.
- Saves time when installing new software.
- Wireless “much more flexible and portable”
Disadvantages of Computer Network
- Are expensive to installed “e.g to connect the computers with alot of cables and wires.”
- Are expensive to maintain (you need a network manager or a computer technician)
- Network manager: fixes everything involved with network only
- Computer technician: fixes everything involved with computer only
- Can be difficult to find where the problems occur in the computer networks when there are lots of computers.
- Sometimes, the viruses can be easily spread from one computer to another computer because if one program on the network have a virus, that virus can go into the other computers on the network because those computers on the network are all connected together.
- When you are doing a work as a group, there might be a connection problem with the network you've made change to a document because that document may not be changed in the computers of the other and they might ended up working in the old document instead.
- Many people would be able to access the data on the network if they know the password, although the owners of the data didn't them want to.
Cables or radio waves: Important consideration
There are several for things you to think about before you decided whether to use the cables or the radio waves for your network. These are the things that you have to consider about:
- The distance that data will need to travel: when the computers are far away from the wireless access point (WAP) the radio waves can get weak and the data can be transfer slower which mean that the radio waves are much more suitable for a short distance.
- The need for portability of devices: when you are using the devices such as laptops, to connect it to network you wouldn't to carry the cables around as you move the laptops with you. Thus, radio waves are the best for the portability because you can connect your laptops with the network wireless.
- Security: the cables is more secure than the radio waves because the radio waves can be hack but the cables cannot be hack.
- Future proofing: (A term used to describe any technology that will not become outdated any time in the near future)you also need to think about whether the cables or the radio waves will still be used or updated in the future or not.
- The speed of data transmission: the cables can transfer lots of data faster than the radio waves because the data are transfer directly through the wires which will be less disturb than the radio waves in which data are transfer through the air.
- The size of the computer network: if there are too many people used the network the radio waves can get weak and the data can be transfer slower. So cables would be better because they are connected directly to each computer.
What are the Computer Network Hardware?
The computer network hardware are the hardware that are needed to make the computer network work. There are many different types of computer network hardware and each of them have different jobs. Here is a list of the computer network hardware:
- NIC- Network Interface Card
If you have a computer that doesn’t have a network card, you can install one. If you have a computer that already has a network card, you can still replace it.In order to connect to a network, a computer must be equipped with a device called a network card. A network card, or a network adapter, also called a network interface card, or NIC, allows a computer to connect to the exterior. If you buy a computer from one of those popular stores or big companies on the Internet, most of their computers have a network card tested and ready. You can reliably use it. If you go to a store that sells or manufactures computers, you can ask them to install or make sure that the computer has a network card.
When it comes to their installation, there are roughly two categories of network cards: internal and external. An internal network card looks like a printed circuit board with some objects "attached" or "glued" to it and it appears as follows:
What this card looks like may not be particularly important and it may depend on the manufacturer but some of its aspects are particularly important. To start, there are two types of cards and you should know which one is suited (or which one you want to use) for your computer. One type of NICs uses a peripheral component interconnect (PCI) connection. Another type uses industry standard architecture (ISA).
- LAN Port-Local Area Network
LAN ports |
- Router
Like a hub, a router is another type of device that connects the network and the internet together. It also can connect two or more networks together. Here is an example of a wired router:
A router functions a little differently than a hub. In fact, a router can be considered a little "intelligent" than the hub.
Like a hub, the computers and other devices are connected to a router using network cables. To make this possible, a router is equipped with holes, called ports, in the back. Here is an example:
- Cables-(Twisted pair & Fiber Optics)
Cable is used to connect computers. Although we may use wireless networking, you should always have cables with you. The most commonly used cable is referred to as Category 5 cable RJ-45. The ends of the cable appear as follows:
They can be in different colors:
You can purchase this cable from a general store, a computer store, or web store on the Internet. When purchasing it, get one with at least 6ft.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
- Server
- WAP- Wireless Access Point
- Switch
Network switch |
- Hub
A hub is rectangular box that is used as the central object on which computers and other devices are connected. To make this possible, a hub is equipped with small holes called ports. Here is an example of a hub:
Although this appears with 4 ports, depending on its type, a hub can be equipped with 4, 5, 12, or more ports.
- Bridge
Network bridge |
- Bluetooth = use radio waves to transfer data from one device to another device such as mobile phones in a short distance (a few meters).
- Wi-Fi = use radio waves to transfer data from one device to another device such as computers in a long distance.
Bluetooth |
Wi-Fi |
What is an IP address?
An IP (stands for Internet Protocol) address. It is a set of numbers that is given to each computers by the NIC (network interface card). Hence the network are able to recognise each computers which make it easier for them to send data from one computer to another compute. However, IP addresses are unique, different computers will have different set of numbers. It will change evrytime you re-open your computer.
Some extras:
If you already have one or more computers that you plan to use as workstations, you can start by checking the hardware parts installed in the computer. As mentioned already, you can use use existing computers or purchase new ones.
The computers used in a network must meet some requirements. The system requirements depend on the (type of) operating system ).
Building a network consists partly of connecting the computers:
Besides the computers, you will use other objects.
I have that you could connect one computer to another. This can be done using their serial ports:
This is possible because almost every computer has a serial port. If you have to connect many computers to produce a network, this serial connection would not be practical. The solution is to use a central object that the computers and other resources can connect to, and then this object becomes responsible to “distribute” or manage network traffic:
The most regularly used types of network distributors are the hub, the router, and the switch.
Router vs Bridges
The routers and the bridges are similar to each other because they both connect different networks together but most people decided to use the routers rather than the bridges because of the main advantages that the routers have over the bridges.
How does the Routers & the Bridges work?
| |
Routers
|
Bridges
|
Deciding where the data should be going and the best way of going (the routes).
|
The data that pass through the bridges must be in the same format.
|
Deciding that the data should be transfer or not.
|
Cannot format the data.
|
Formatting the data so that it could be accessed by the receiving networks.
| |
Can connect the networks that are very different together.
|
Facts about the Computer Networks:
- The switch and hub can work together but it will work slower than the switch alone.
- The radio waves work well horizontal but not vertical.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Network Topologies (Structures)
Computer networks can be connected in a number of ways.The 3 most common structures, or topologies, are called star,ring and bus network. Here are the outline of their structure.
The word topology means ‘arrangement’, so when we talk about the topology of a network, we mean how the different parts are arranged and connected together.
Star Network
In this type of network
every computer is connected to a central device. The device passes messages
between computers.
At the centre of a star
network you might use a hub (cheap, but slower) or a switch (more expensive,
but faster).
A star network…
Is quite expensive to
install (you have to buy lots of cable and the central device)
Is very fast since each
computer has its own cable which it doesn’t need to share
Can cope with a broken
cable (only one computer will be affected)
Will stop working if the
central device breaks
Is the most common network
topology.
Star Network |
Ring Network
In this type of network each computer is connected to a loop of cable, the ‘ring’. (If you
took a bus network and connected the ends of the bus cable together, you would
have a ring network.)
A ring network…
- Can cope with a break in the ring cable since all computers are still joined together (it is now a bus network)
Ring Network |
Advantage:
- Can create very large networks because you can just keep on adding the devices into the network.
Disadvantages:
- If one computer has broken down, the whole network will stop working because the data can only travel in one way.
- Difficult to add new computers into the network because if you'll have to put them between two computers and while you were putting them in the network will stop working until you finished and you'll also have to reconnected some of the computers with the new ones.
- Can create very large networks because you can just keep on adding the devices into the network.
Disadvantages:
- If one computer has broken down, the whole network will stop working because the data can only travel in one way.
- Difficult to add new computers into the network because if you'll have to put them between two computers and while you were putting them in the network will stop working until you finished and you'll also have to reconnected some of the computers with the new ones.
Bus Network
In this type of network, a long, central
cable, the ‘bus’ is used to connect all of the computers together.
Each computer has a short cable linking it to the ‘bus’. At the end and the start of the central line there is a terminator. It will stop data from bouncing around.
A bus network…
- Is cheap to install (just
one long cable)
- Can be quite slow since all computers share the
same cable when communicating
- Will stop working if there is a break in the central bus cable.
- New devices can be easily added to the network because you can just connected them to the central line.
- Although, one or more computers on the network are broken down but this will not affect the whole network because all of the computers are connected to the central line not to the other computers.
- If the central line is broken, the whole network will collapsed because all of the devices are connected to the central line.
- The more devices you added to the network, the slower the network works.
Tree network
It is a combination of star network and bis network; some device are connected directly to the central line and some are connected together to form a star network. This kind of topology is quite popular because it contains the advantages of both star network and bus network.
Advantages:
- The advantages are the same as the star network and the bus network.
- Although, the central line is broken but the devices that are connected together in a star network can still communicate with the devices that are on the same network.
Disadvantages:
- The disadvantages are the same as the star network and the bus network.
Wireless Local Area Network (WLAN)
A wireless LAN (WLAN) is a LAN that usesradio signals (WiFi) to connect computers instead of cables.
At the centre of the WLAN is a wireless switch or router - a small box with one or two antennas sticking out the back - used forsending and receiving data to the computers. (Most laptops have a wireless antenna built into the case.)
It is much more convenient to use wireless connections instead of running long wires all over a building.
At the centre of the WLAN is a wireless switch or router - a small box with one or two antennas sticking out the back - used forsending and receiving data to the computers. (Most laptops have a wireless antenna built into the case.)
It is much more convenient to use wireless connections instead of running long wires all over a building.
However, WLANs are more difficult to make secure since other people can also try to connect to the wireless network. So, it is very important to have a good, hard-to-guess password for the WLAN connections.
This is a list of hardware that are needed for this type of networks:
- Wireless Access Point (WAP): spread the network signals around certain areas.
- Network Interface Card (NIC): sent the network to the WAP.
- Boosters (amplifiers): makes the network signals spread further.
- Wireless repeaters: increase the network areas because same access point that have the same IP can be uses in different locations.
- Routers: allows the computers to access the internet through the WAP.
Advantages of WLAN
Here is a list of the main advantages of the WLAN:
- More portable than the LAN because the users can work anywhere within the network areas without having to carry the cables around with them.
- The WAP are mostly installed in the public areas (e.g. cafes, libraries, etc) which mean that the users can access the internet in many different areas.
Disadvantages of WLAN
Here is a list of the main disadvantages of the WLAN:
- Can sometimes become quite slow because there are many users and it can be disturb by the other signals or currents easier than the LAN and the WAN because the WLAN signals travel through the air not the wires.
- Not secure because many people can access to it.
- The computers and the servers can be connected together in a shorter distance than by using the cables because if they are far away the signals will get weak and sometimes when the distance is too far away they might be unable to connected together.
Wide Area Network (WAN)
A Wide Area Network is a network that extends over a large area.
A WAN is often created by joining several LANs together, such as when a business that has offices in different countries links the office LANs together.
Because WANs are often geographically spread over large areas and links between computers are over long distances, they often use quite exotic connections technologies: optical fibre (glass) cables, satellite radio links, microwave radio links, etc.
The Internet is an example of aglobal WAN .In fact it is the world’s largest WAN.
Computers on the International Space Station are linked to the Internet, so the you could say the the Internet is now the first off-planet WAN!
A WAN is often created by joining several LANs together, such as when a business that has offices in different countries links the office LANs together.
Because WANs are often geographically spread over large areas and links between computers are over long distances, they often use quite exotic connections technologies: optical fibre (glass) cables, satellite radio links, microwave radio links, etc.
The Internet is an example of aglobal WAN .In fact it is the world’s largest WAN.
Computers on the International Space Station are linked to the Internet, so the you could say the the Internet is now the first off-planet WAN!
Advantages of WAN
- The data can be share quickly across the countries.
- It is one of the fastest ways of transferring the data across the countries.
Disadvantages of WAN
- If there is a connection problem within the WAN (e.g. if there the telecommunication links fail), it would became impossible to use the WAN.
- The viruses often spread through the WAN than the LAN because more people are using it.
- The WAN are hacked more than the LAN because it is easier to access.
Advantages of WAN
- The data can be share quickly across the countries.
- It is one of the fastest ways of transferring the data across the countries.
Disadvantages of WAN
- If there is a connection problem within the WAN (e.g. if there the telecommunication links fail), it would became impossible to use the WAN.
- The viruses often spread through the WAN than the LAN because more people are using it.
- The WAN are hacked more than the LAN because it is easier to access.
Bluetooth (Personal Area Network)
Bluetooth is a wireless networking technology designed for very short-range connections (typically just a few metres).The idea of Bluetooth is to get rid of the need for all of those cables (e.g. USB cables) that connect our computer to peripheral devices such as printers, mice, keyboards, etc.
Bluetooth devices contain small, low-powerradio transmitters and receivers. When devices are in range of other Bluetooth devices, they detect each other and can be 'paired' (connected)
Typical uses of Bluetooth:
- Connecting a wireless keyboard to a computer
- Connecting a wireless mouse to a computer
- Using a wireless headset with a mobile phone
- Printing wirelessly from a computer or PDA
- Transferring data / music from a computer to an MP3 player
- Transferring photos from a phone / camera to another device
- Synchronising calendars on a PDA and a computer
Tip 1
While the networks are sending the data from one computer to another, the data can
be disturb by the high-voltage electrical cables that are running along side the
network cables or by different wireless signals.
Tip 2
When you are using the WLAN, the routers are unnecessary for you unless you want
to connect the internet to the WLAN.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
What is an ISP?
ISP stands for Internet Service Provider. It is a company that allows user to
acces the internet by given us the router to connect the internet through their
servers. However we have to pay the montly fees to those company.
acces the internet by given us the router to connect the internet through their
servers. However we have to pay the montly fees to those company.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
What is a Data Packet?
Have you ever wondered that when we sending emails and data to other computer, if the files are too big(for instance the files contains lots of graphics) it will takes a long time to send? But nowadays it have improved. The network solve this problem by breaking the files into millions of small pieces before sending it. Those pieces are called Data packet.
The data packet have 4 main parts in each pieces.
- The header (Contains the IP address of the sender)
- The packet number (identify the part of the files is)
- The data
- The footer ( contains the IP address of the receiver)
Another reason that the network breaks the data into smaller pieces, is because if there is some interference, the file could get lose while the networks is sending them, therefore it will have to re-send the file again. So if they don't break the files up, the networks will have to resend the whole files again which is time-consuming. Thus, if they break the files into small pieces although there are some interference on the way, only parts of the files will get lost. Therefore, the networks'll only have to send the parts that are lost and not the whole files.
Why are the Header, the Footer & the Packet Number important?
The header which is the IP address of the sender and the footer which is the IP address of the receiver are important because if too much electricity disturb the files while they are sending the data part can get lost. So if the data get lost we can check that the receiver receive the data or not and what kinds of data that the sender wanted so the networks can resend the data again if they know who is the receiver and who is the sender by checking the IP addresses.
The packet number help the networks to arrange different parts of the files that were break down into the correct order. If those parts were arranged in the wrong orders, the files will be different from the original files or the receivers might not be able to open the files.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
How does the Computer Network Connected?
The diagram below will show you how the computer network are connected:
How does the router works?
The router are used for sending data across the network. The reason that it is called a router" is because it will choose the best and quickest route to send the data. Thus, the data will be delivered as fast as possible.
Here is an example how the router works:
* In the diagram above there are just a few routers that are connected together but in the reality there are billions of routers connected together.
For example :This is what the routers do when A want to send the email to B:
- Router A allow the laptop that A was using to connect to the internet.
- After A click "send", the data (email) was send to router A because router A know the IP address of the laptop.
- Router A know the IP address of router 1 so it send the data to router 1.
- Router 2 and router 4 know the IP address of router B but the route to router 2 was better (faster way) so router 1 send the data to router 2.
- Then router 2 send the data to router B.
- Router B know the IP address of B's laptop (which is the receiver) so it send the data to B's laptop.
- Finally, B receive the email from A.
- Router 2 will send the message to the routers that are connected to it that it was broken.
- Instead of sending the data to router 2, router 1 will send the data to router 3.
- Router 3 will send the data to router 4.
- Router 4 will send the data to router B.
- Router B will send the data to B's laptop.
- Finally, B receive the email from A.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
What is a Modem?

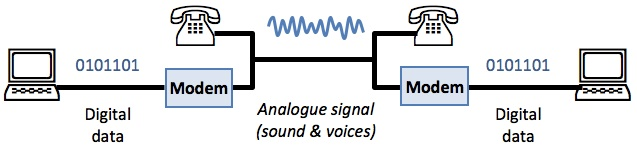

The term Modem comes from Modulate (Make digital) demodulate (to make analogue).The job of the modem is to convert a digital signal into an analogue signal and then convert the analogue signal back into digital signal again.
A modem |
Powered by Blogger.
About Us
Intro: Eh-ho!! I would like to introduce you this fascinating blog :D It'll be a revision for me during the exam that I'm likely to use it. If you're one of those students that are learning ICT IGCSE, this blog will going to be your BFF :) GTG P.S it will be weekly pdated....
Very informative blog! I love this one.
Please take some time to visit my blog @
Computer networking notes
Thanks!
FUCK OFFF
